Props can be used on all types of building constructions or can be brought to use where an adjustable load-bearing member is required.
Prop provide the ideal and the most economic methods of support for all kinds of form work, slabs, beam, wall and columns, etc. They are also invaluable for a wide variety of applications in general building construction and repair work

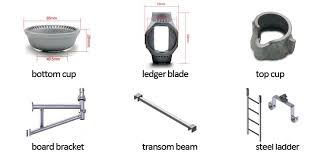

Verticals/Standard Cuplock - Verticals are available to suit any propping or access application economically. The connection point is at 500/1000 mm verticals intervals for maximum versality in use. The lover cups are welded in position, the upper moveable cups are retained by a fixed stop. The verticals are drilled for the fixing of the SPIGOT joint. A bolt can be used to restrain upward forces if required. These are available in different sizes 3000mm, 2500 mm, 2000 mm, 1500mm, 1000 mm or as required
Horizontals/Legers - Horizontals are available in range of standard sizes or can be made to a special legenth if required. The forged specials length in required. The forged blade end fits in the cup of the verticals. The simple robust design ensure that horizontals need no maintenance. These are available in following sizes: 2500mm, 2000mm, 1500mm, 1250mm, 1000mm, 500mm, or I.e. effective length EFFECTIVE LENGTH = CENTRE OF THE TWO VERTICALS
Cuplock is a proven multipurpose scaffolding system which can be used for all forms of access & support structure in the building and construction industries.
Speed of erection cuplock It provides major saving in erection and dismantling times thus minimising on site cost. It can be erected 75% faster than traditional scaffolding. When not in use, its modular constructions ensure minimal space requirements for storage.
Simplicity and strength the success of CUPLOCK lies in the node point or faster method. Four horizontals can be fastened at one time making a very rigid connection. The horizontal bear directly on the verticals and are firmly clamped by the action of the top cup. The rigid node point allows for high horizontal load experienced with a 57kN leg load.
Versatility when investing in equipments it must be as versatile as possible. CUPLOCK can be erected for straight, curved and circular configuration for both access and for independent and mobile tower.
Durability when no loose parts and with corrosion protection it can be easily stored and maintained. Designed to be tough, CUPLOCK is highly resistant to damage. When not in use, its modular construction ensure minimal space requirement for storage.
Q-Stage standards are used for support purpose and are made of standard scaffold tube of 48.3 mm 0.D x 4.00 mm thick. They are also available in 48.3 x 3.25 mm thick tubes in both 50C and 40C steel grades as per B.S. 4360. They have a series of pressed “V” welded at 495 mm interval. The standard has integral spigot for accurate vertical alignment.
